DVS - Drop Volume System
Drop Volume System for precise media quantification and process control + Optional process monitoring and readjustment during operation
The (Drop Volume System) DVS 31 and DVS 32 from VERMES Microdispensing set a new benchmark in high-precision media-quantification microdispensing processes. These advanced drop volume measurement systems are specifically engineered for real-time monitoring of low- to medium-viscosity fluids.

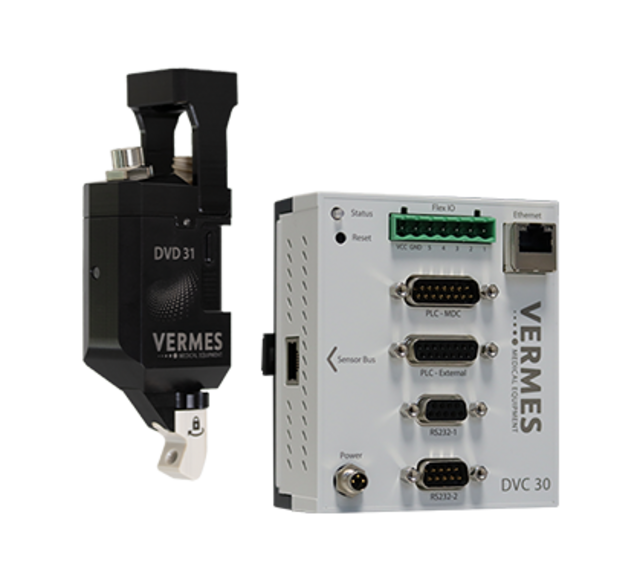

Each unit consists of: DVD + DVC (= DVS)
- DVD: Drop Volume Device
- DVC: Drop Volume Controller
Ideal for GMP-regulated environments, the DVS ensures sub 1 % deviation accuracy, supporting critical applications in the life sciences, semiconductors, and electronics.
- Real-time Droplet Monitoring: Enables stable in-process measurement of single or burst dispensing
- Immediate Detection of Irregularities: Provides early detection of dispensing errors to minimize reject rates
- Accurate Fluid Volume Control: Achieves highly accurate volume analysis for process development and QA
- Seamless Integration: Effortless retrofitting via modular design, PLC/RS232 (machine-to-machine interface (MMI)) interfaces
- User-friendly GUI: Browser-based interface, and tool-free setup
- Compatibility: Fully compatible with a wide range of VERMES with Piezo and non-Piezo systems and accessories
+ For the DVS+ Option: Closed Loop Exact Volume Regulation
→ Precise volume readjustment in closed-loop operation
| Technical Data | |
| Recommended media | Low to medium viscosity up to 12,500 mPas (aqueous solutions, oils, alcohols, UV glue, etc.) |
| Max. supply pressure | Up to 12 bar |
| Operating temperature | 5 °C - 50 °C |
| Interfaces | RS-232C, Power Supply, PLC, Ethernet, Sensor Bus |
| Dimension | DVD 31 | DVD 32: 82.4 mm H x 26.0 mm W x 40.0 mm D Controller Unit DVC 30: 107 mm H x 95 mm W x 57.3 mm D |
| Weight | DVD 31 | DVD 32: 60 g Controller unit DVC 30: 203 g |
| Power supply | Controller unit DVC 30: 24 V / 5 V DC |
